Advanced Dissolved Oxygen Benchtop Meter with Optical DO Probe (opdo®) – HI6421-02

Advanced Dissolved Oxygen Benchtop Meter with Optical DO Probe (opdo®) – HI6421

HI6421 is a streamlined benchtop meter with a large touch screen display, comprised of a housing and an integrated module designed for fresh and saltwater measurements of dissolved oxygen.

HI6421 includes Hanna’s HI7641133 optical dissolved oxygen probe (opdo®) that is based on the principle of fluorescence quenching. An immobilized Pt-based luminophore is excited by the light of a blue LED and emits a red light. As oxygen interacts with the luminophore it reduces the intensity and lifetime of the luminescence. The lifetime of the luminescence is measured by a photodetector and is used to calculate the dissolved oxygen concentration.

The probe is fitted with easy to use Smart Caps (HI764113-1) which lock in place and contain pre-loaded calibration coefficients that are automatically transmitted to the probe. The Smart Cap features an immobilized O₂ sensitive luminophore with rugged insoluble black oxygen permeable protective layer. Over time, the sensor’s optical components can age but are compensated for by using the reference signal to compensate the measuring path. As a result, the sensor provides accurate DO measurements over long periods of time without the need for frequent calibration. Concentration measured. Additional features include built-in methods and calculations for the measurement of BOD (Biological Oxygen Demand), OUR (Oxygen Uptake Rate), and SOUR (Specific Oxygen Update Rate). Pressure compensation is done automatically (built-in barometer) or users have the option to manually enter required value. Pressure is displayed in user-configurable units: mmHg, mbar, kPa, inHg, psi, atm.

Features at-a-glance

User interface

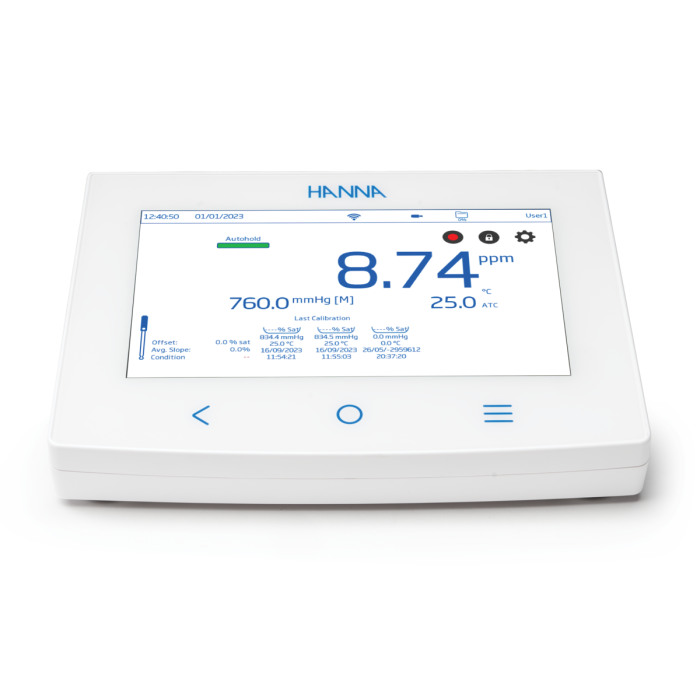

• 7-inch capacitive touch screen with multi-touch support
• Capacitive touch back, home and system menu keys
• User-friendly icons and symbols allow users to easily navigate and interpret the instrument functions

The user can select between five different views:

• Basic measurement configuration
• Simple GLP with calibration information
• Full GLP with electrode status and calibration point details
• Live updated, interactive graph
• Tabulated data with date, time, and notes

Measurement

• Measure %Sat, mg/L, ppm (DO); mg/L, ppm (BOD); mg/L (OUR); ppm, mg/L (SOUR)
• Application-specific profiles allow quick and direct measurement without the need to update the
  sensor and system settings
• Active log during measurement Measurement stability indicator (using the Stability Criteria setting)
• Reading modes: direct and direct/auto-hold
• Temperature compensation can be Automatic or set manually
• Audible and/or alarm messages for measurements outside of predefined limits
• Galvanic isolation for measurement

Calibration

• One or two points calibration at 0% and/or 100% saturation
• Single point manual calibration in mg/L or % saturation using a reference method
• Non-volatile memory saves data and settings

Logging

• Data log collection of at least 1,000,000 data points (with time and date stamp)
• Logging types: manual, automatic, auto-hold
• Sample ID for manual and auto-hold data

Connectivity

• Transfer logged data ta USB thumb drive
• Log files that include measurements and calibration data (as .csv file)
• FTP and email for log export via Ethernet and Wi-Fi connection
• USB type A for USB stick, keyboard, and printer
• USB type C for USB stick and PC connection

Help section for meter guidance

• Video support presentation of main functionalities

Ordering Information:

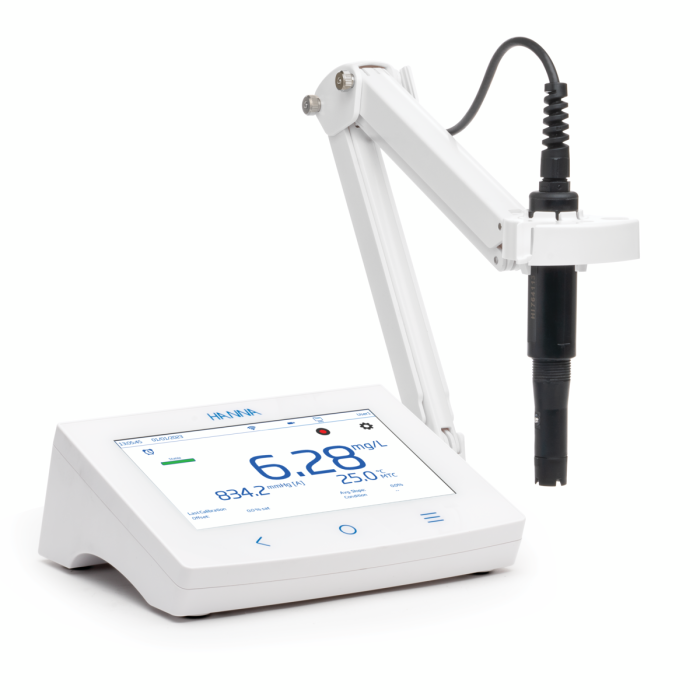

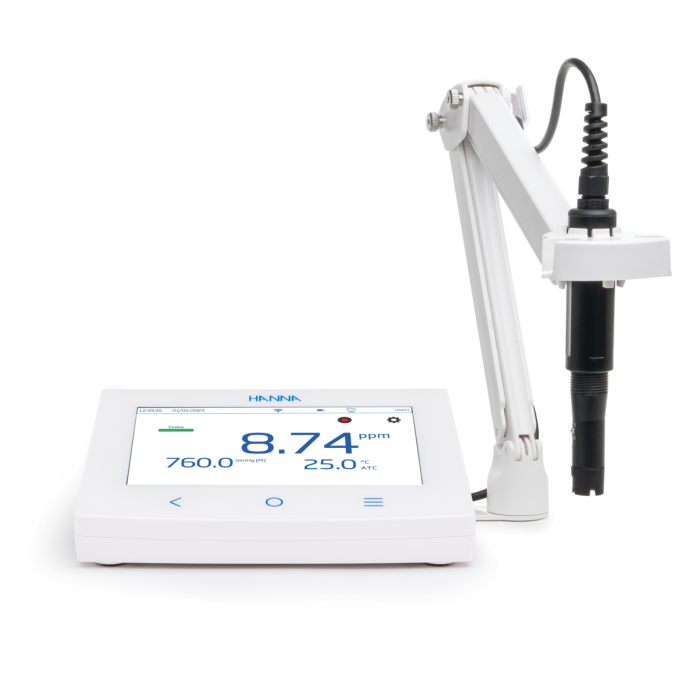

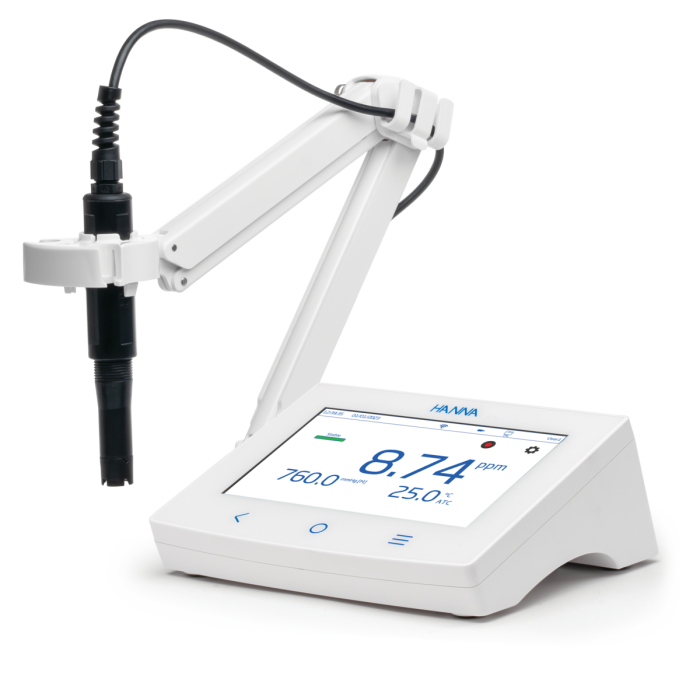

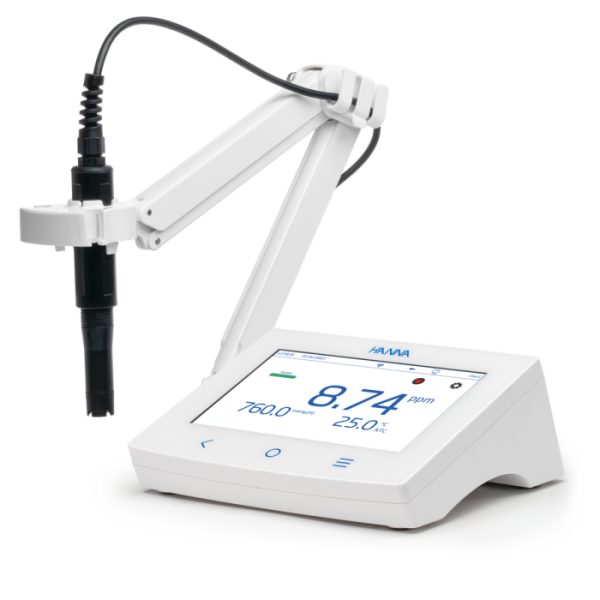

HI6421 is supplied with HI7641133 optical dissolved oxygen probe (opdo®); HI764060 electrode holder; capillary pipette; 24 VDC power adapter; USB-C to USB-A cable; probe quality certificate; quick reference guide with instrument quality certificate.

Accessories:

HI7641133 optical dissolved oxygen probe (opdo®)
HI764113-1 Smart cap with o-ring
HI764113-2 Calibration/storage vessel
HI764113-3 Stainless steel protective shield

Specification:

SKU	HI6421-02
Product Name	Advanced Dissolved Oxygen Benchtop Meter with Optical DO Probe (opdo®) – HI6421
Quote Required	Yes
DO (HI7641133 Optical probe) Range	0.00 to 50.00 mg/L (ppm) concentration; 0.0 to 500.0 % saturation
DO (HI7641133 Optical probe) Resolution	0.01 mg/L (ppm); 0.1 % saturation
DO (HI7641133 Optical probe) Accuracy	from 0.00 to 20.00 mg/L (ppm) 1.5 % of reading or ± 0.01 mg/L (ppm), whichever is greater from 20.00 to 50.00 mg/L (ppm) ±5 % of reading from 0.0 to 200.0 % saturation ± 1.5 % of reading or ± 0.1 %, whichever is greater from 200.0 to 500.0 % saturation ±5 % of reading
Barometric Pressure Range	450 to 850 mmHg; 600 to 1133 mBar; 60 to 133 kPa; 17 to 33 inHg; 8.7 to 16.4 psi; 0.592 to 1.118 atm
Barometric Pressure Resolution	1 mmHg; 1 mBar; 1 kPa; 1 inHg; 0.1 psi; 0.001 atm
Barometric Pressure Accuracy	±3 mmHg within ±15 % from the calibration point ±3 mmHg ±1 least significant digit
Temperature Range	−20.0 to 120.0 °C −4.0 to 248.0 °F 253.0 to 393.0 K
Temperature Resolution	0.1 °C; 0.1 °F; 0.1 K
Temperature Accuracy	±0.2 °C; ±0.4 °F; ±0.2 K
DO Calibration Points	One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). Single point manual using a value entered by the user in % saturation or mg/L.
DO Calibration Standards	0 and 100% saturation
DO Calibration Reminder	Disabled Daily
Temperature Compensation	Automatic or Manual
Salinity Compensation	Automatic from 0 to 70 PSU (manually set) 0.0 to 70.0 % / 0.0 to 45.0 g/L / 0.0 to 42.0 psu
Reading Modes	Direct Direct/Autohold
Reading Stability criteria	Accurate Medium Fast
Reading Isopotential	7.000 or 4.010
Reading Sampling rate	1000 ms
DO Views Basic	Measurement (DO, Temperature) Stability status
DO Views Simple	GLP Basic view information Last calibration date, offset, average slope
DO Views Full	GLP Simple GLP information and calibration point details
DO Views Table	Measurements updated every second are displayed in table
DO Views Graph (Plot)	Measurement versus time graph can be panned or zoomed (pinch-to-zoom technology)
Logging Type	Automatic, Manual, Autohold
Logging Number of records	50 000 maximum per file Stores at least 1 000 000 data points per user
Logging Automatic interval	1, 2, 5, 10, 30 seconds / 1, 2, 5, 10, 15, 30, 60, 120, 150, 180 minutes
Logging Sample ID	Incremental mode
Logging Export option	.csv file format
Users	Up to 9 users and the default administrator account

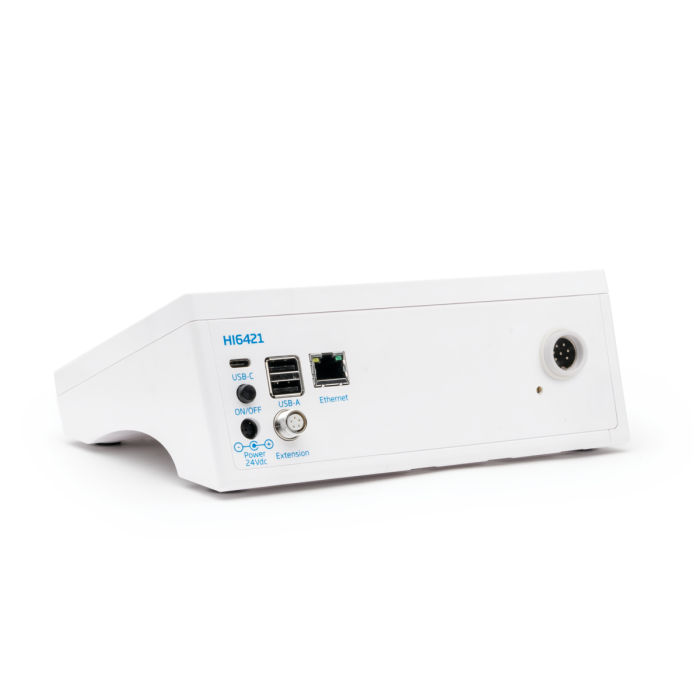

Connectivity USB-A	2 ports for keyboard input or USB thumb drive
Connectivity USB-C	1 port for PC connectivity and USB-C type thumb drive
Connectivity Wi-Fi & Ethernet	FTP / Web server Log transfer and download Email
Connectivity RS232	Connecting peripherals
Power supply	DC adapter 100-240AC to 24VDC 2.5A
Environment	0 – 50 °C / 32 – 122 °F / 273 – 323 K maximum 95% RH non-condensing
Dimensions	205 x 160 x 77 mm (8.0 x 6.2 x 3.0 “)
Weight	1.2 kg (26.5 lbs.)1
