- On-screen tutorial messages
- Two point calibration
- Auto endpoint
- DO range up to 300%, temperature compensated
- Altitude compensation up to 4000 m
- Salinity compensation up to 80 g/L
- Automatic calibration in air
- GLP features
- Low battery indicator

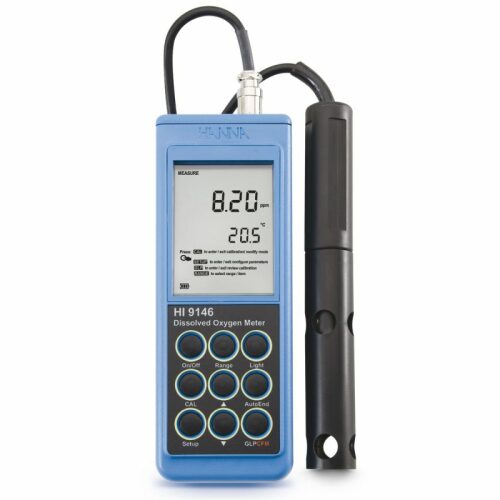

HI 9146 is a water-resistant, dissolved oxygen meter that measures up to 300% saturation or 45 ppm (mg/L) with temperature compensation and automatic calibration. It has been developed for DO and temperature measurement in water, wastewater, wine and applications such as fish farming.
This instrument also allows altitude compensation up to 4000 m and the ppm and % saturation are both compensated for changes in solubility of oxygen in water and for permeability of the membrane as well as the temperature effect.
The included polarographic probe features built-in temperature compensation and removable protective membrane cover.
Order Information: HI 9146-04 is supplied complete with HI 76407/4F probe with 4 m (13.1’) cable, HI 76407A membranes (2), HI 7041S electrolyte solution (30 mL), batteries, instructions and rugged carrying case. HI 9146-10 is supplied complete with HI 76407/10F probe with 10 m (32.8’) cable, HI 76407A membranes (2), HI 7041S electrolyte solution (30 mL), batteries, instructions and rugged carrying case.
Product Manuals
Manual: Download
Specification :
| Range | O2 | 0.00 to 45.00 mg/L |
| Range | % Saturation O2 | 0.0 to 300.0% |
| Range | Temperature | 0.0 to 50.0°C |
| Resolution | O2 | 0.01 mg/L |
| Resolution | % Saturation O2 | 0.1% |
| Resolution | Temperature | 0.1°C |
| Accuracy | O2 | ±1.5% F.S. |
| Accuracy | % Saturation O2 | ±1.5% F.S. |
| Accuracy | Temperature | 0.5°C |
| Calibration | automatic, in air, at 100% | |
| Temperature Compensation | automatic, 0 to 50°C (32 to 122°F) | |
| Altitude Compensation | 0 to 1900 m (100 m 326′ resolution) | |
| Salinity Compensation | 0 to 40 g/L (1g/L resolution) | |
| Probe | HI 76407/4F with 4 m cable | |
| Power Supply | 4 x 1.5 AA batteries / approx. 200 hours of continuous use; auto-off after 4 hours of inactivity; or input for 12 Vdc power adapter | |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% | |
| Dimensions | 196 x 80 x 60 mm (7.7 x 3.1 x 2.4″) | |
| Weight | 500 g (1.1 lb.) |
Related products
Advanced Dissolved Oxygen Benchtop Meter with Optical DO Probe (opdo®) – HI6421 HI6421 is a streamlined benchtop meter with a large touch screen display, comprised of a housing and an integrated module designed for fresh and saltwater measurements of dissolved oxygen. HI6421 includes Hanna’s HI7641133 optical dissolved oxygen probe (opdo®) that is based on the...
All Product
฿27,285.00
Hanna Instruments is proud to introduce the world’s most innovative pH, EC, and DO meter... edge™.
Advanced Dissolved Oxygen Benchtop Meter with Polarographic DO Probe – HI6421P HI6421P is a streamlined benchtop meter with a large touch screen display, comprised of a housing and an integrated module designed for fresh and saltwater measurements of dissolved oxygen. HI6421P includes the HI764833 polarographic probe. Slim and versatile, this probe covers a wide range...
The HI98194 is a waterproof portable logging multiparameter meter that monitors up to 12 different water quality parameters including 6 measured and 6 calculated. The microprocessor based multi-sensor probe allows for the measurement of key parameters including pH, ORP, conductivity, dissolved oxygen, and temperature. The probe transmits readings digitally to the meter, where data points...
฿12,305.00
Dissolved oxygen sensor, with o-ring, to be used with HI 9829 and HI 98290 series multiparameter meters.
All Product
฿35,845.00
Hanna Instruments is proud to introduce the world’s most innovative DO meter: edge®. edge’s groundbreaking design is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. edge is a single meter that can measure Dissolved Oxygen and is incredibly easy to use.
฿53,607.00

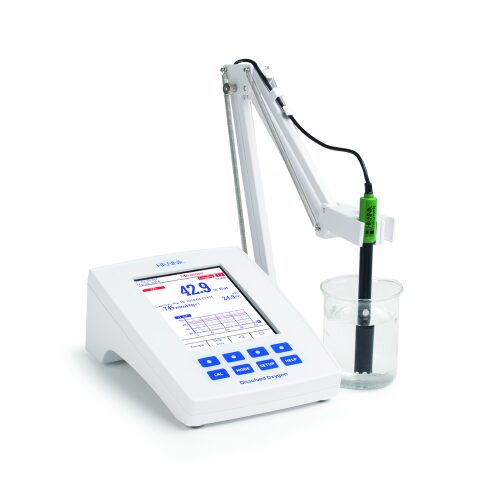

The HI5421 is an advanced research grade benchtop Dissolved Oxygen and BOD meter that is completely customizable with a large color LCD, capacitive touch keys, and USB port for computer connectivity. The HI5421 is rich in features including data logging, alarm limits, comprehensive GLP, and many more while retaining simplicity in use with both dedicated key for routine operation and virtual keys that guide the user through setup options.
